2. Inverse Burrows-Wheeler Transform

• https://en.wikipedia.org/wiki/Burrows%E2%80%93Wheeler_transform

Lecture

• Goal
  • Reconstruct original genome from the Burrows-Wheeler Transform of the genome

Algorithm	Memory	Time

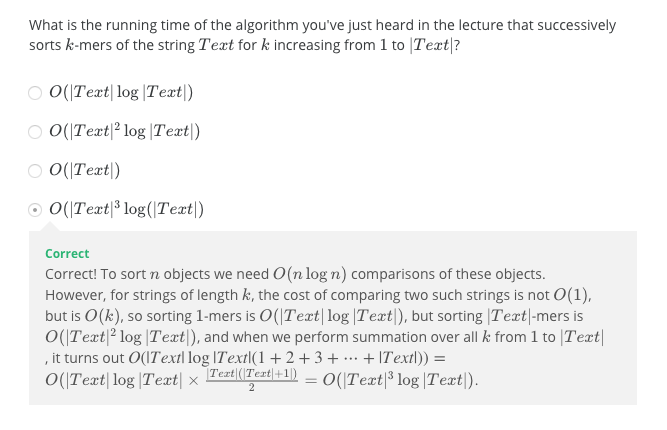

Trivial Implementation	O( N^2 )	O( N^3 log N )

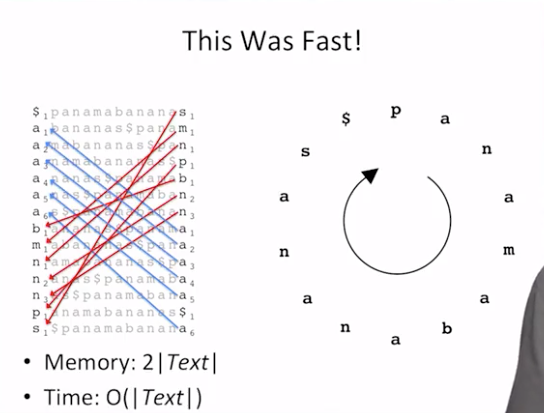

First-Last Property Optimization	O( 2N )	O( N )

• Summary

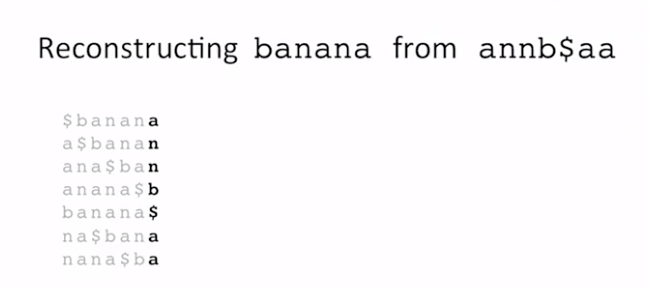

  • We can go back from the Burrows-Wheeler Transform of the genome to the original genome:

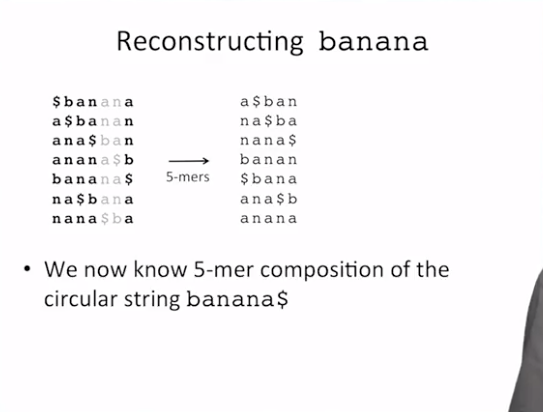

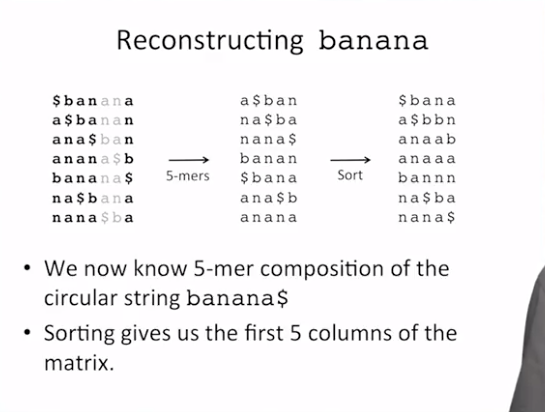

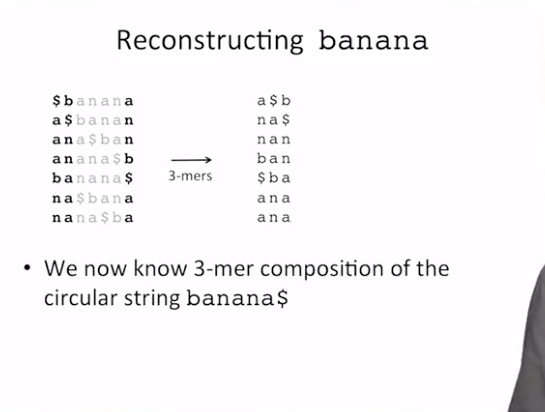

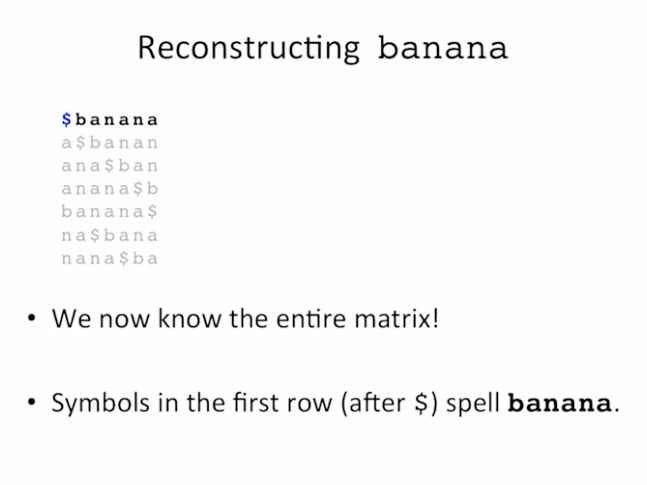

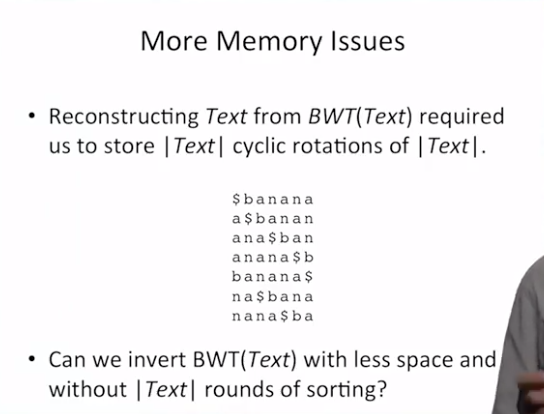

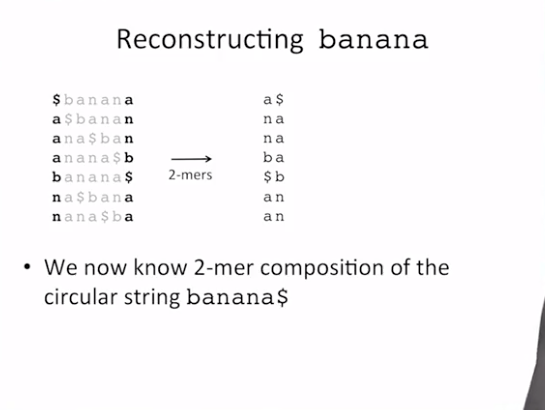

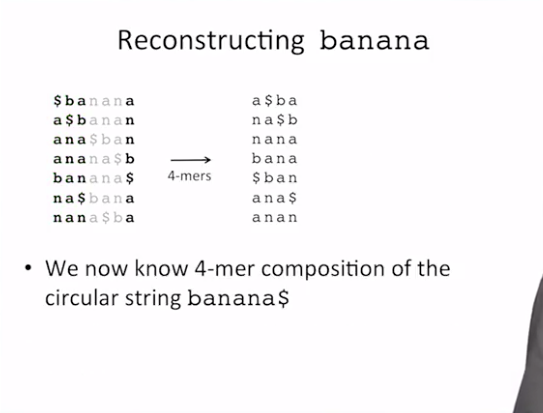

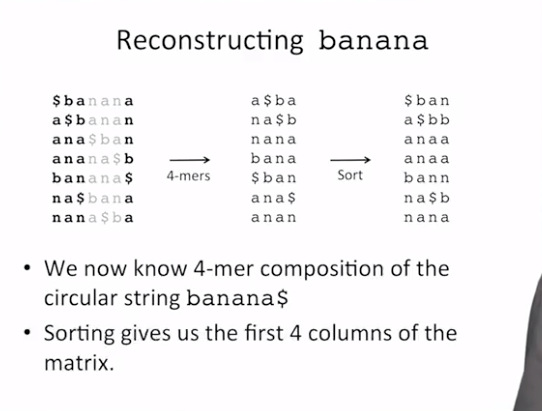

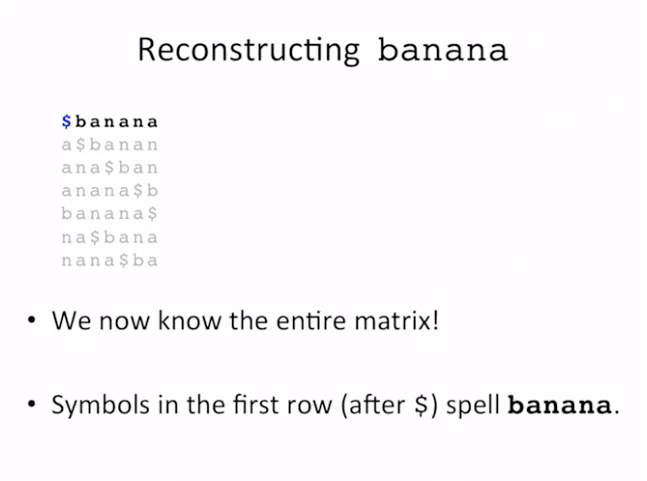

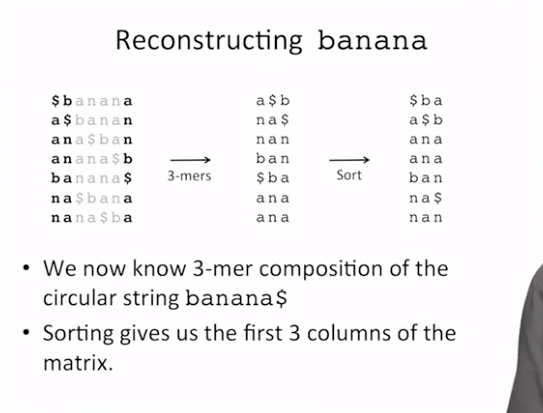

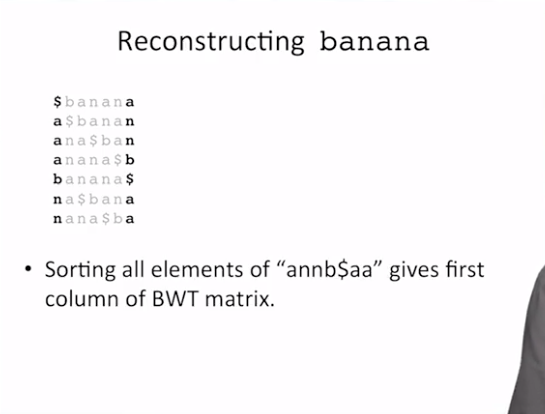

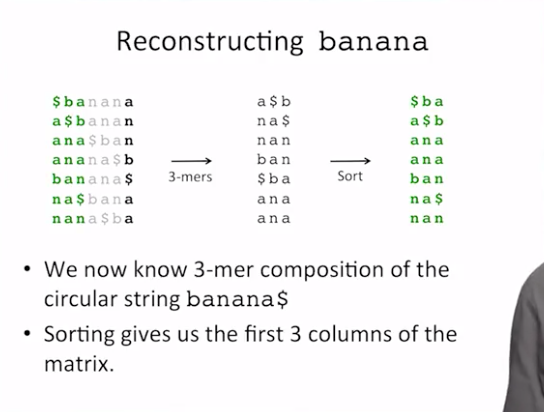

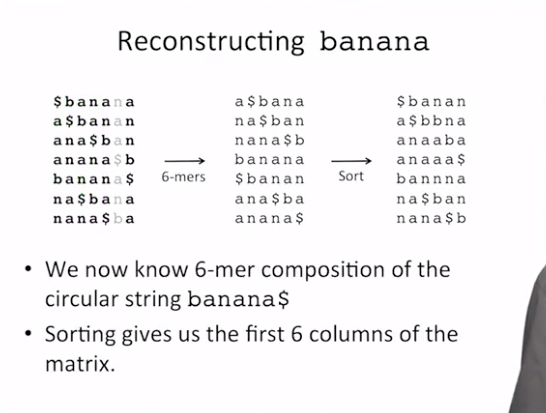

Trivial Implementation

— — — — — — — — — — — — — — — — — — — — — —

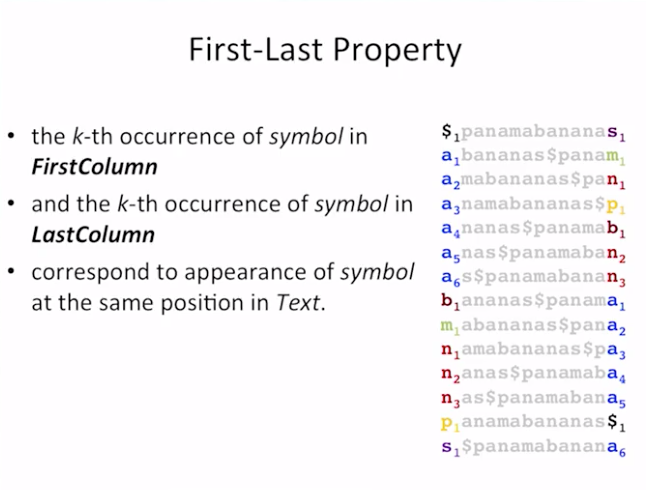

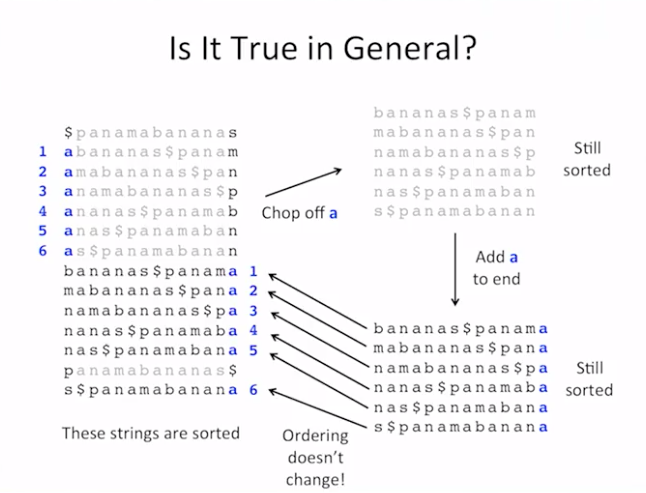

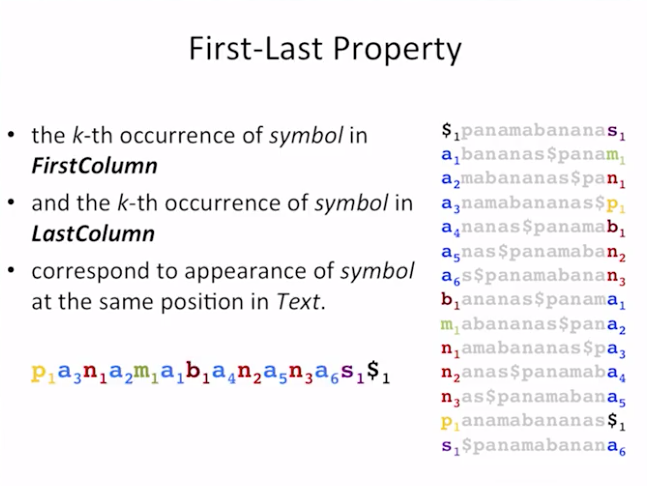

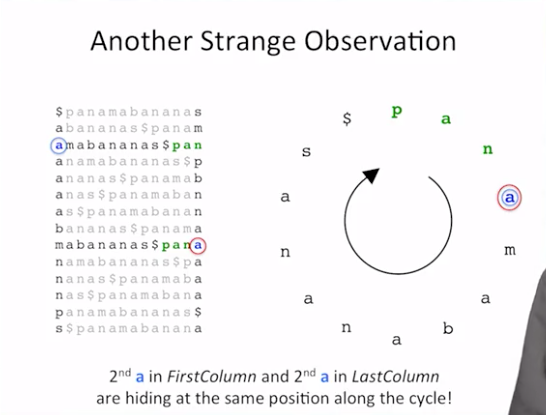

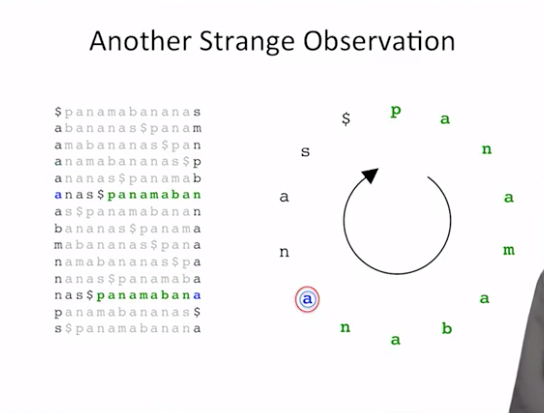

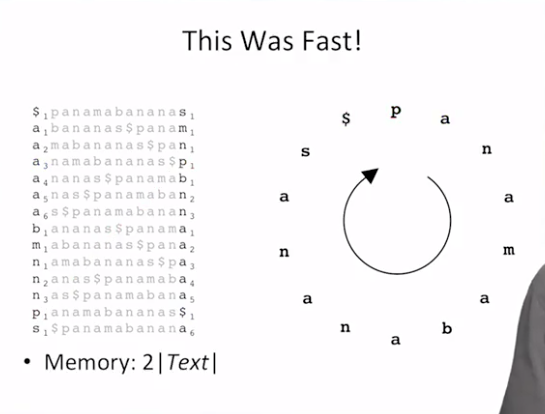

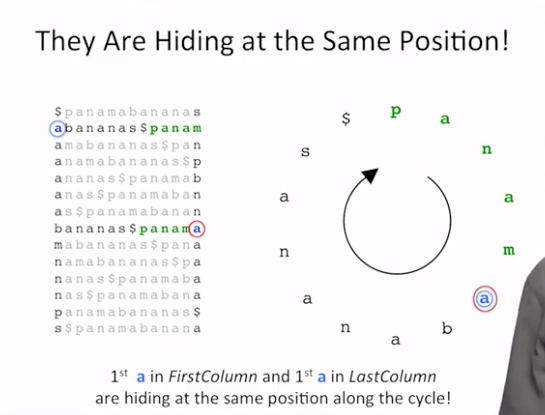

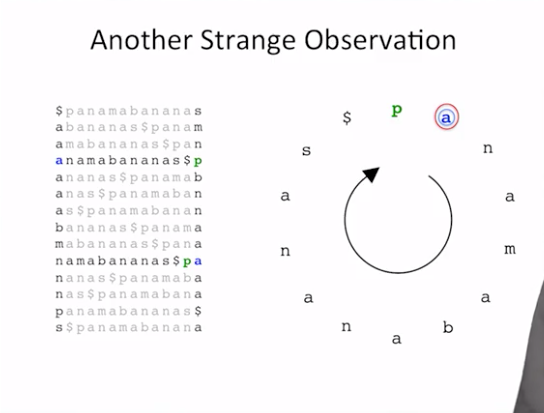

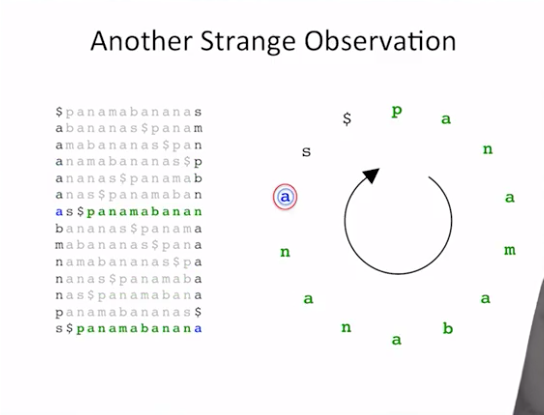

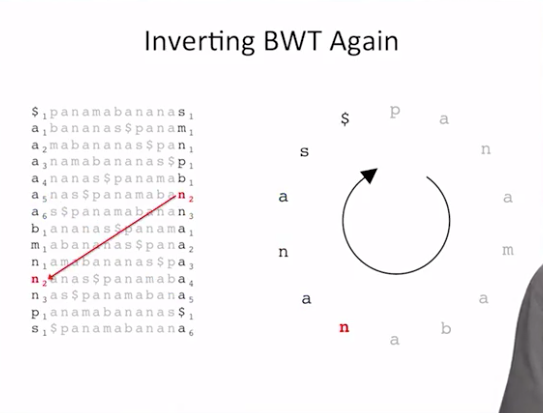

First-Last Property Optimization

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

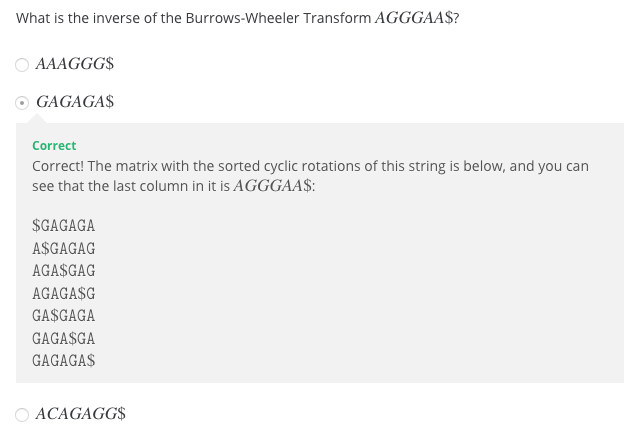

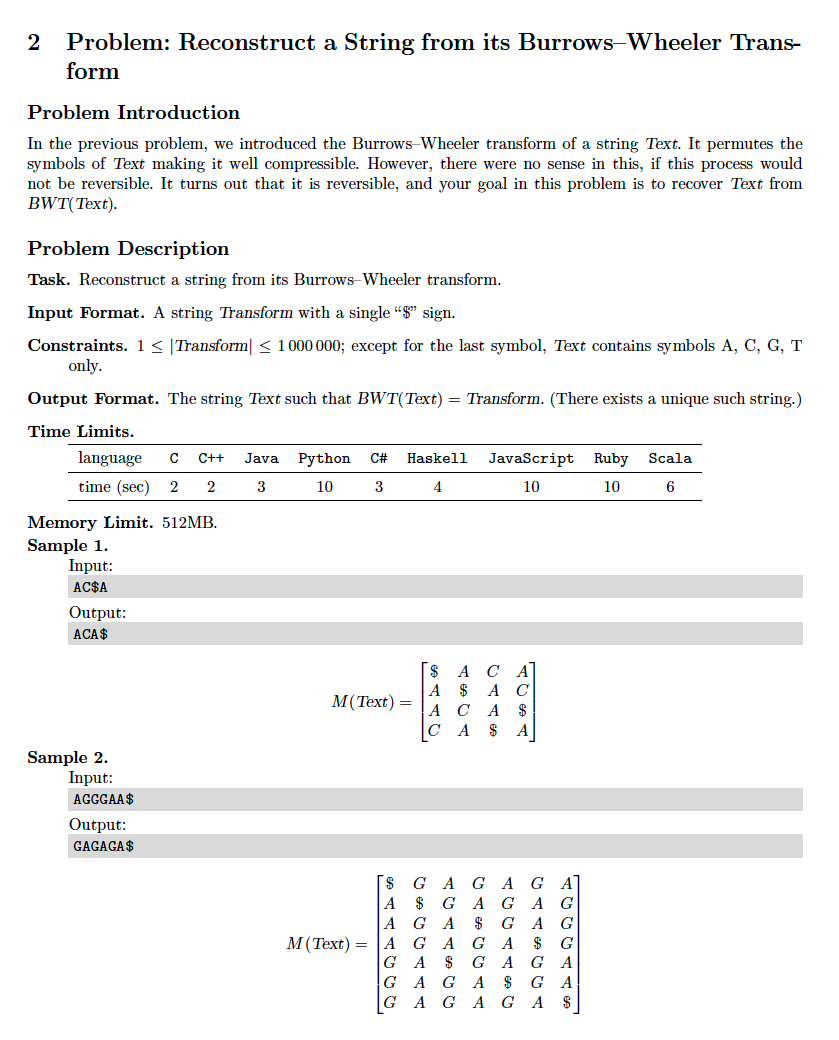

Problem

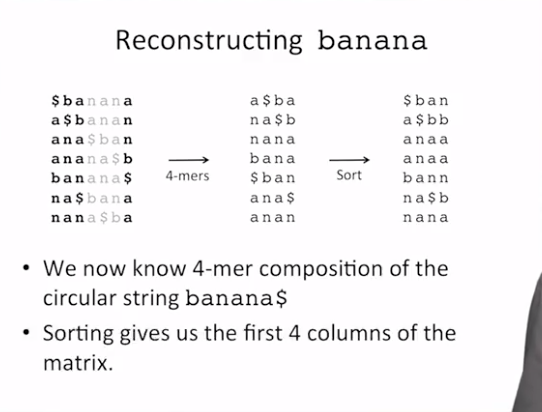

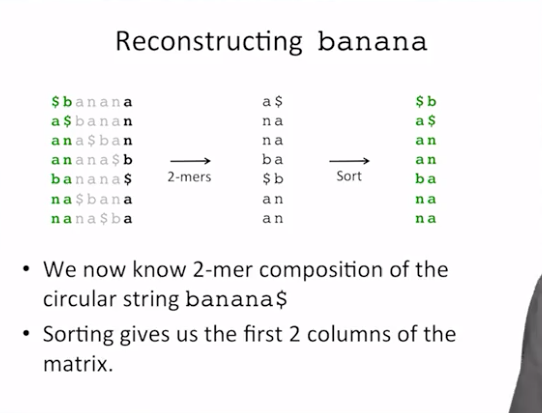

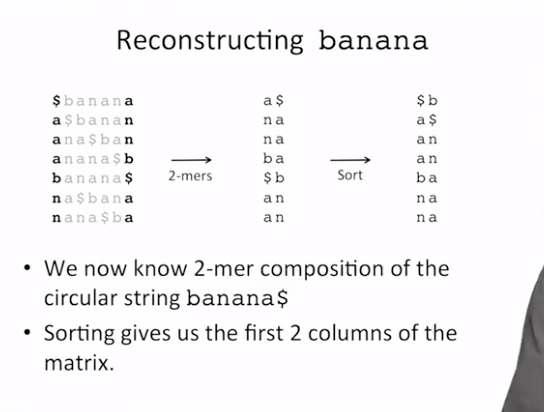

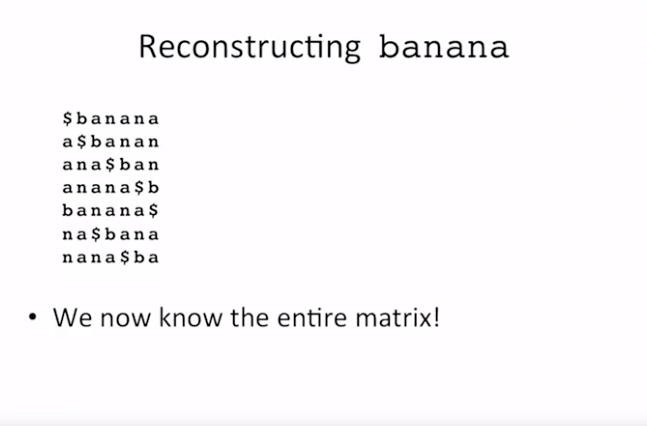

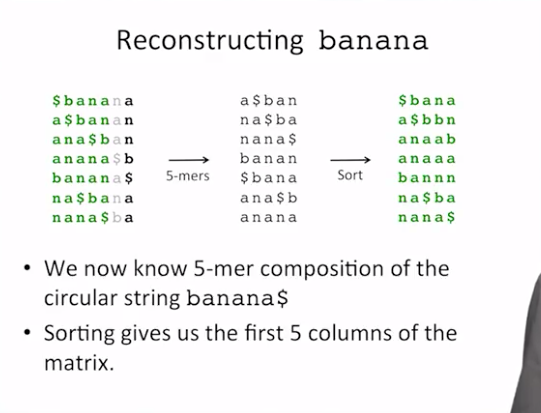

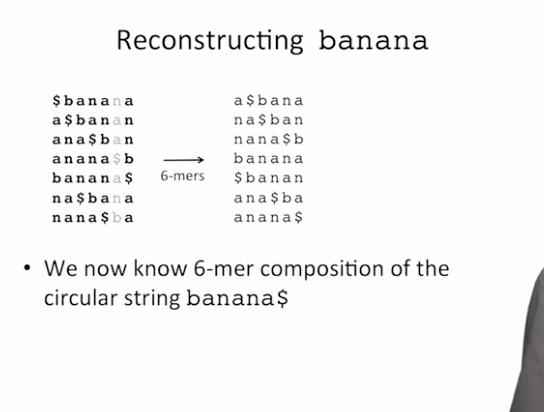

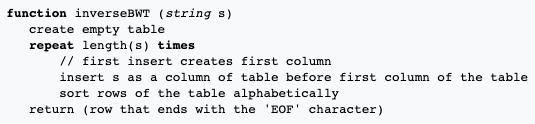

Pseudocode (trivial implementation)

Pseudocode (first-last property optimization)

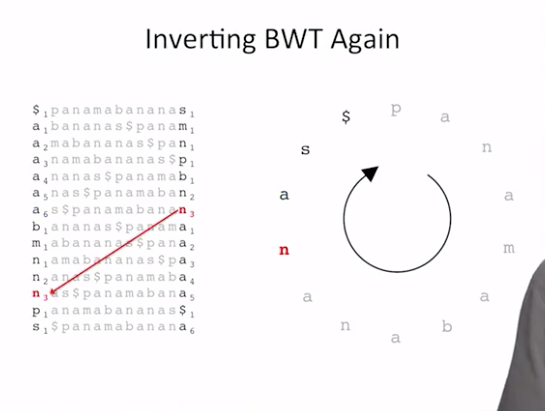

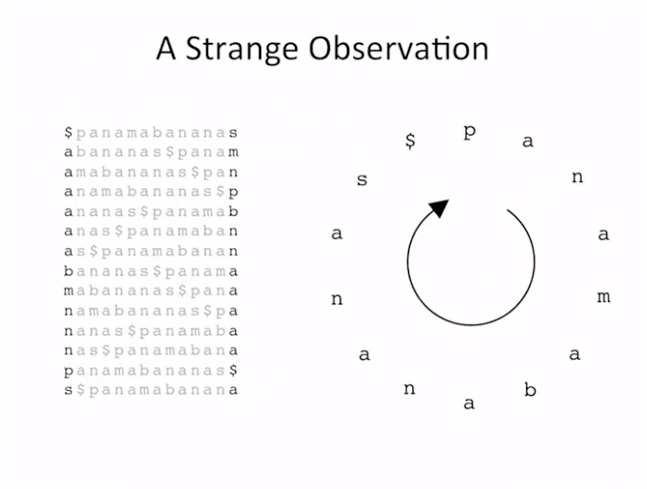

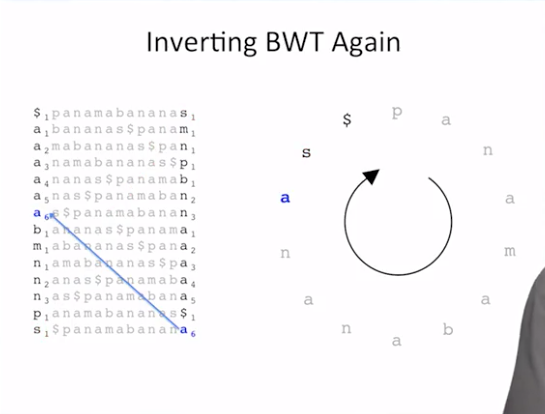

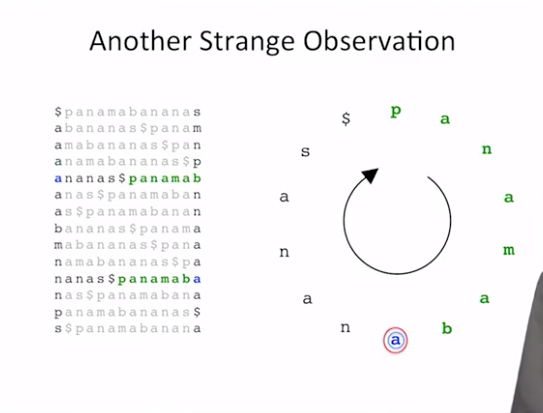

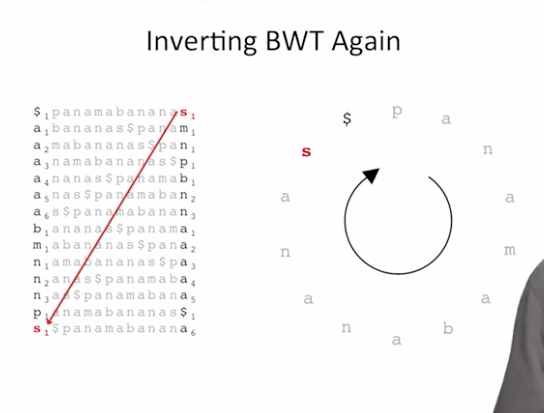

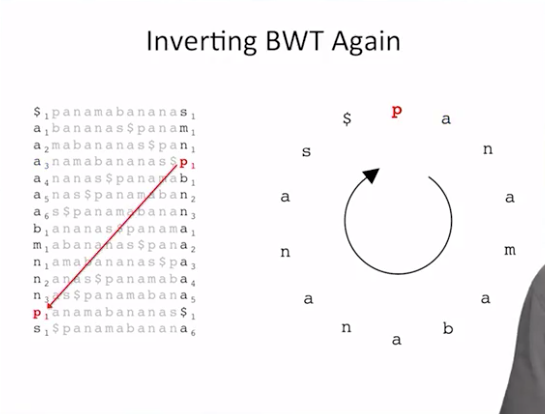

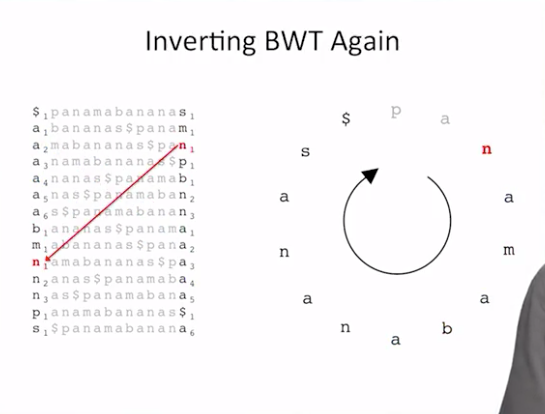

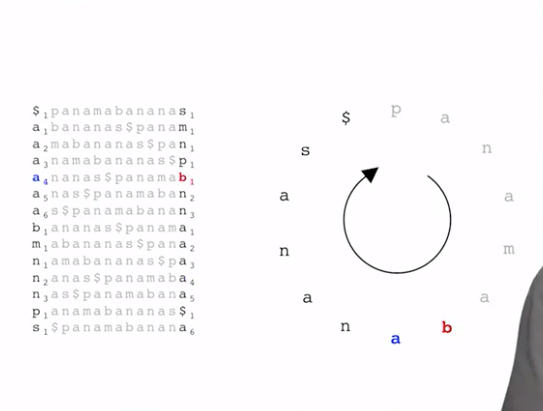

The path traversed in step 3 below is the original genome ( in reverse order ):

• step 1: create an id counter to track unique char instances
  • i.e. A(1,2,...,N-1,N), B(1,2,...,N-1,N), C..., D..., ...

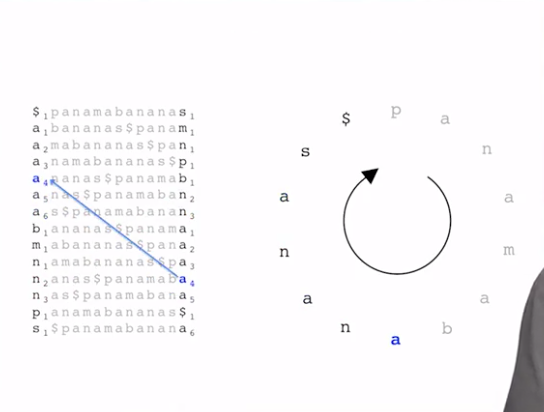

• step 2: use the id counter to create a first-last path which associates first-last char instances

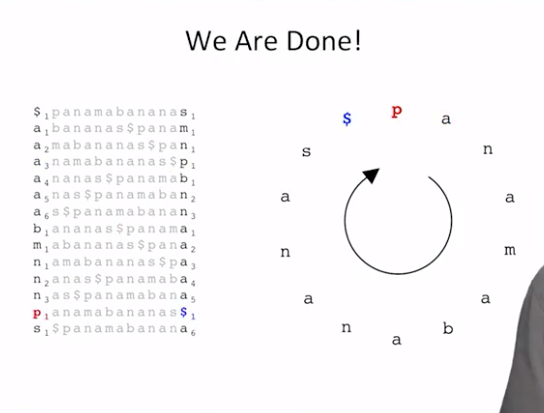

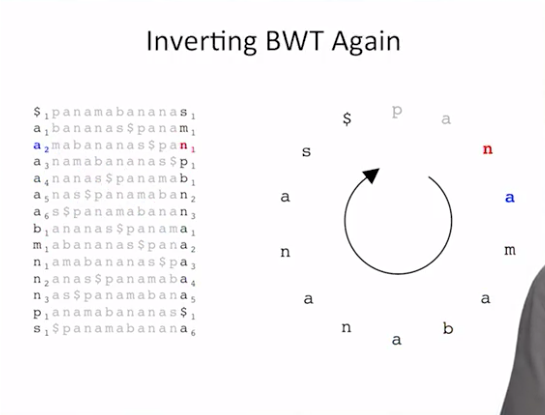

• step 3: follow the first-last path, starting from $(1) and ending at $(1)

Solutions

• C++

CPP

    #include <iostream>
    #include <sstream>
    #include <string>
    #include <queue>
    #include <algorithm>
    #include <unordered_map>

    //#define TRIVIAL_IMPLEMENTATION
    //#define OUTPUT_CYCLIC_ROTATIONS__THE_BURROWS_WHEELER_TRANSFORM_MATRIX
    #define OUTPUT_INVERSE_BURROWS_WHEELER_TRANSFORM__THE_ORIGINAL_GENOME

    using namespace std;

    #ifdef TRIVIAL_IMPLEMENTATION // Failed case #27/44: time limit exceeded (Time used: 4.05/2.00)
    using Deque = deque< char >;
    using Strings = vector< Deque >;
    int main() {
        string str; cin >> str;
        const auto N = str.size();
        Strings S( N );
        for( auto i{ 0 }; i < N; ++i ){
            for( auto j{ 0 }; j < N; ++j )
                S[ j ].push_front( str[ j ] );
            sort( S.begin(), S.end() );
        }
    #ifdef OUTPUT_CYCLIC_ROTATIONS__THE_BURROWS_WHEELER_TRANSFORM_MATRIX
        for( auto i{ 0 }; i < N; ++i, cout << endl )
            for( auto j{ 0 }; j < S[ i ].size(); ++j )
                cout << S[ i ][ j ];
        cout << endl;
    #endif
    #ifdef OUTPUT_INVERSE_BURROWS_WHEELER_TRANSFORM__THE_ORIGINAL_GENOME
        auto it = find_if( S.begin(), S.end(), []( const auto& str ){ return str.back() == '$'; });
        string inverse{ it->begin(), it->end() };
        cout << inverse << endl;
    #endif
        return 0;
    }
    #else // First-Last Property Optimization
    using Counter = unordered_map< char, int >;
    using Path = unordered_map< string, string >;
    int main() {
        Path path; {
            string transformed; cin >> transformed;
            auto sorted{ transformed }; sort( sorted.begin(), sorted.end() );
            const auto N = transformed.size();
            Counter begCnt, endCnt;
            for( auto i{ 0 }; i < N; ++i ){
                ostringstream first, last;
                auto beg = sorted[ i ],
                     end = transformed[ i ];
                first << beg << ++begCnt[ beg ];
                last  << end << ++endCnt[ end ];
                path[ first.str() ] = last.str();
            }
        }
        string inverse{ '$' }; {
            const auto sentinel{ "$1" };
            for( auto cur = path[ sentinel ]; cur != sentinel; cur = path[ cur ] )
                inverse.push_back( cur.front() );
        }
        reverse( inverse.begin(), inverse.end() );
    #ifdef OUTPUT_INVERSE_BURROWS_WHEELER_TRANSFORM__THE_ORIGINAL_GENOME
        cout << inverse << endl;
    #endif
        return 0;
    }
    #endif
